HCCS Vision micro-podule

[Index by function]  [Index by Company]

HCCS Vision micro-podule top

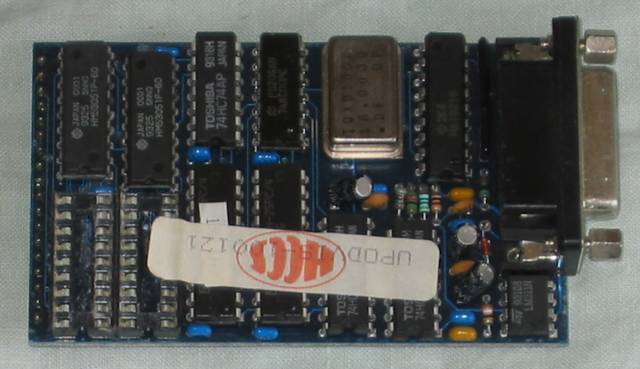

HCCS Vision micro-podule (top)

 HCCS Vision micro-podule bottom

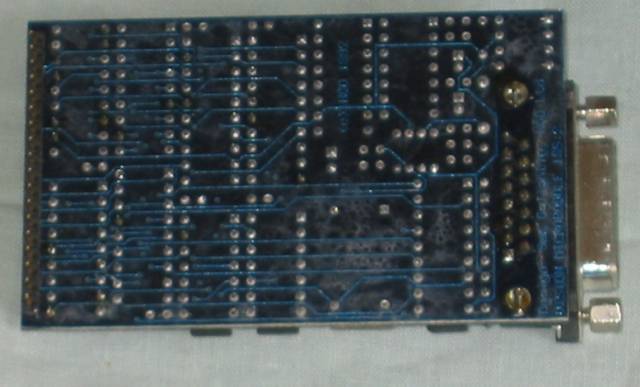

HCCS Vision micro-podule (bottom)

 The HCCS Vision micro-podule is one of a range of micro podules for the "Ultimate" A5000 Multipod card and the A3020 Ultimate Expansion. The Micro podule has a socket at the left hand end which connects to the socket on the Multipod card and the interface at the right hand end fits into a cutout on the Multipod backplane. The card is a digitiser and has an external 15pin D socket to connect a video source.

 Details of the HCCS "Ultimate" A5000 Multipod system base unit HERE  and the A3020 Ultimate expansion HERE .
