Acorn Archimedes A400 Series

[A300]      [Archimedes]     [A400/1]

Introduction

The Archimedes A400 Series were the "professional" version of the Archimedes. Unfortunately there were a number of problems with the design and only the A440 (I think) was actually produced. It was soon replaced by the A400/1 range.

The following models were produced [as far as I know]:

Manuals and documents

 Here is the Acorn Archimedes 440 product brochure
APP136 Archimedes 440

Here is the Acorn Archimedes Welcome Guide (Arthur).

Here is the Archimeded High Performance Computer Systems Model 440 Service Manual , and the technical drawings.

A410

Although the A410 was announced, I am not convinced it was ever actually sold. The original announcement leaflet in June 1987 listed the 400 series and included the 410 and 440, the difference being the 440 had 4MB RAM and a 20MB hard disc. The Archimedes 440 leaflet in January 1988 does not mention the 410. The July 1987 price list says the A410 will be available 1st Quarter 1988, the January 1988 price list says available 2nd Quarter 1988.

I have heard that the A440 was much more popular than expected so all A400 production was for the more profitable A440 rather than the A410.

By 1989 it was replaced by the 410/1.

I have never seen an A410, but if it exists I want one. [Wanted]

A440

The Archimedes 440 was launched in June 1987 with availability in November 1987. It was the top of the Archimedes range. It was similar to the A300 series, although it had a different motherboard with a built in ST506/MFM controller and came with a 20MB hard disc. Unlike the A300 the A440 was not a BBC Microcomputer and so its keyboard did not have red function keys or the BBC logo.

Here are some pictures:

A440 running RISC OS 2

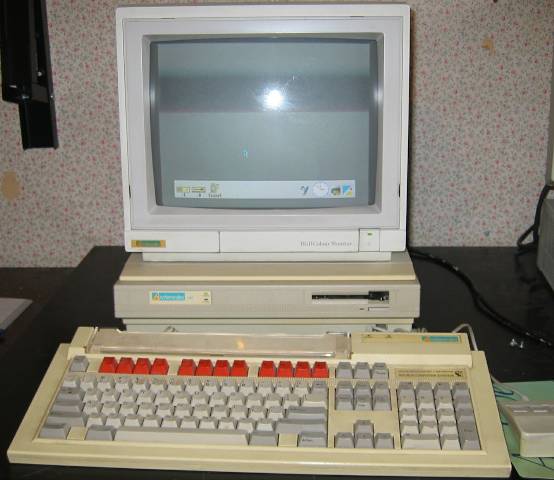

A440 running RISC OS 2.00

This is not the original Operating System, the A440 was shipped with Arthur 1.2. The keyboard is from an A310, the A440 keyboard did not have red function keys or the BBC logo above the numeric key pad.

A440 rear view

A440 rear view

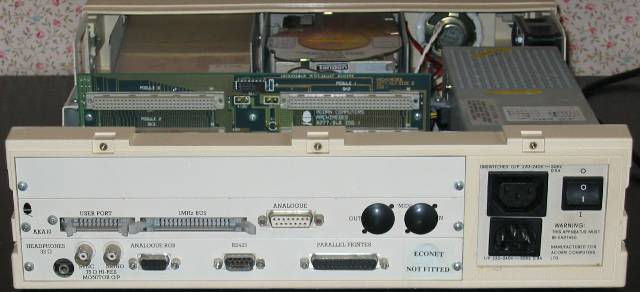

A440 rear view. At the top of the picture you can see the floppy disc (left) and hard disc (centre) and the speaker and PSU (right). In the middle you can see the 4 slot backplane. At the bottom are the connectors; in the middle of the backplate is the AKA10 I/O podule, with user port, 1MHz bus and analogue port.

A440 with the top off

A440 with the top off

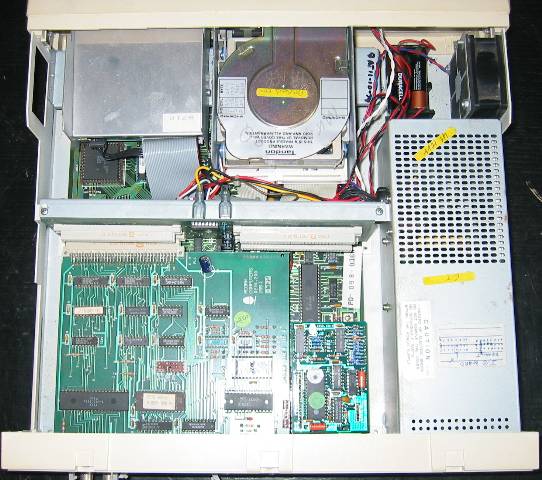

 A440 with the top off. The Acorn AKA10 I/O podule is at the bottom left. The Econet Module to the right (interestingly the "Econet not fitted" sticker has not been removed from the backplate, (see previous picture). There is a clear view of the fan and battery pack for the CMOS RAM in the top right.

A440 with I/O podule removed

A440 with the I/O podule removed

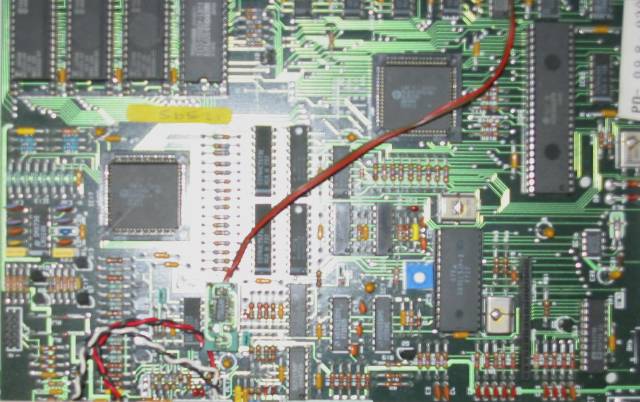

 A440 with the I/O podule removed. The VIDC Enhancer is just visible at the bottom left with the red/black wire running down from the top of the picture. I am not sure who made it, but the circuit board is too small for a manufacture's name.

A440 motherboard

A440 motherboard

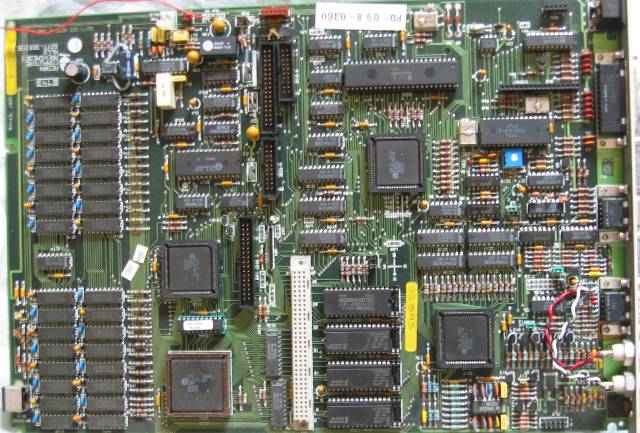

The A440 motherboard has been photographed sideways with the front of the A440 is to the left and the back to the right. On the left edge, at the bottom, is the keyboard and mouse connector. Behind it, is the 4MB RAM. Between the RAM and the backplane connector is the ARM2 CPU (bottom) with the MEMC1 above it. Above the MEMC1 is the ST506 hard disc interface with the disc connectors. To the right of the backplane connector at the bottom are the 4 RISC OS2 ROMs. The various interface connectors are on the right.

Specification:

Serial No.27-ABK20-1000357
Unique Indentityn/a
Motherboard part no.277,300 Issue 1
CPU TypeARM2
CPU ModelVL2333-QC
CPU Clock8MHz
Memory ControllerMEMC1
VL2304
Memory4MB
Memory Clock8MHz
Video ControlerVIDC1a
VL2303A
Floppy Disc DriveSony MP-F63W-00D
Hard Disc ControllerST506/MFM
Hard Disc DriveTandon TM 362 19MB
Backplane ModelAcorn 4 slot
Backplane part no.0277,040 Issue 1
Podule 0n/a
Podule 1n/a
Podule 2Acorn AKA10
I/O podule
0276,200 issue 1
25-AKA10-1000075
Podule 3n/a
Econet
Econet Module
0259,200 issue 1
01-ADF-1005508

Other upgradesVIDC Enhancer
OSRISC OS 2.00
OS Date5-Oct-88
SICK v1.22
Dhrystone/sec
kWhetstones/sec

5383
66
ARMSi v4.0
MIPS
4.56
