Online Media STB20

[NCs, STBs & Prototypes]     [Computers]

Introduction

Acorn Online Media's second set top box (STB) was the STB20 which was used in trials with Cambridge Cable, here is the announcement News from Online Media . The STB20 was based around the ARM7500 processor. with 32MB memory. It had the internal Acorn project name Falcon which can be seen on the circuit board

I have been unable to run the usual hardware configuration and benchmarking tools on the STB20, because there is no way to load the software. There is no floppy disc drive or connector for one. The STB20M has an Ethernet card, but it is not configured when the STB20M boots so I can't connect to that. I have tried using an Atomwide parallel SCSI adaptor on the printer port, but I am short of suitable SCSI devices to try, and none I have tried work. It looks as if I will have to connect a second IDE disc with the files I require to activate the Ethernet card. or get some authentic DB25 male to DB25 male connectors and try my Syquest 270MB drive.

 Manuals and documents

None.

Set op Boxes

I have two different models:

Set Top Box STB20

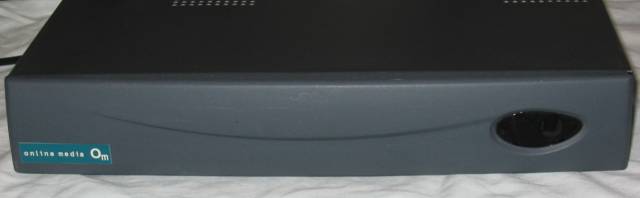

AOM STB20 front

 Acorn Online Media STB20 (front)

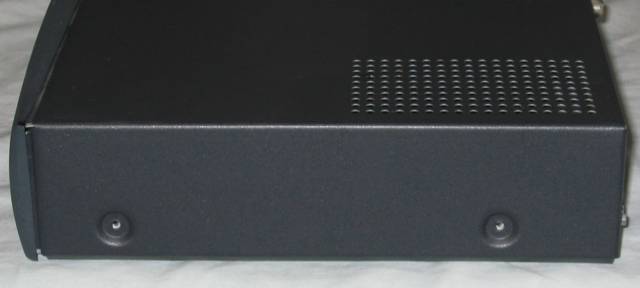

AOM STB20 right

  Acorn Online Media STB20 (right)

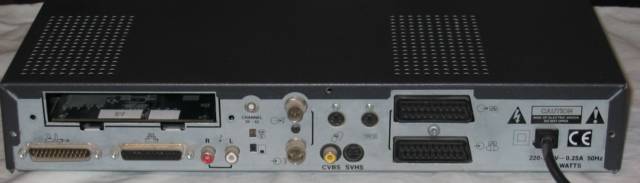

AOM STB20 back

  Acorn Online Media STB20 (back)

The back panel of the STB20 showing all the interface ports. On the top row from left they are:

On the bottom row from left to right they are:

Unfortunately the STB20 didn't have any documentation with it so, I have no more details of the ports.

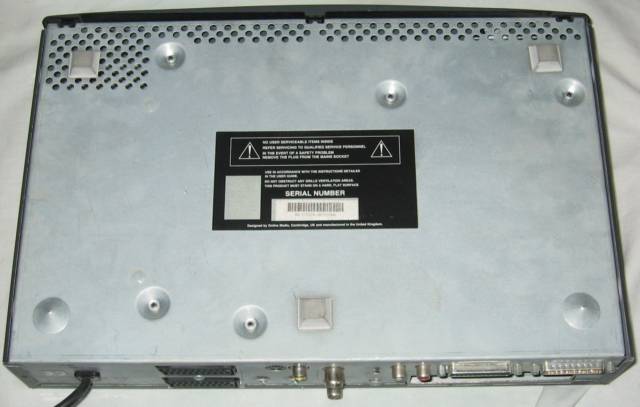

AOM STB20 bottom

  Acorn Online Media STB20 (bottom)

The bottom of the STB20 shows the serial number 80-STB20-0010266.

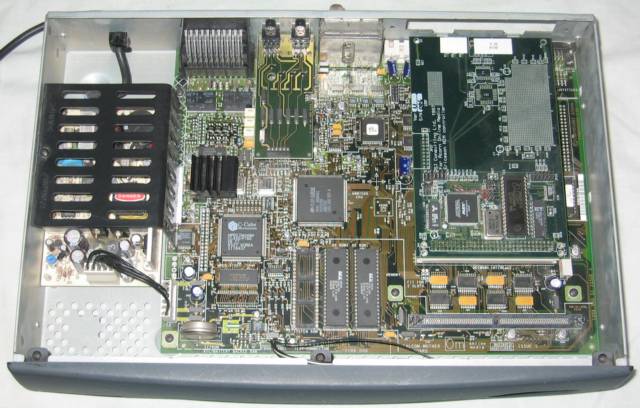

AOM STB20 open

  Acorn Online Media STB20 with top cover removed

The STB20 with the top cover removed shows:

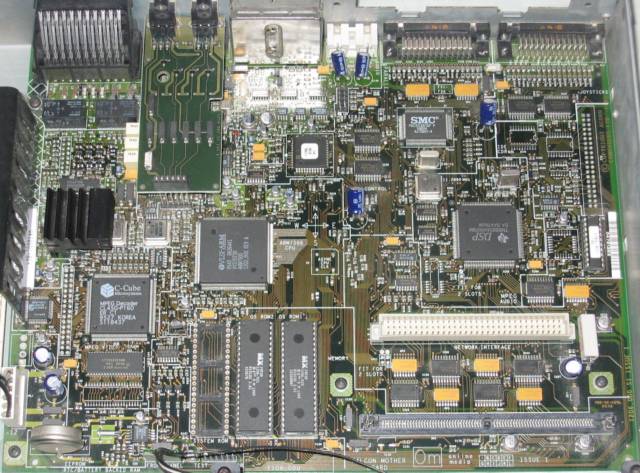

AOM STB20 circuit board

  Acorn Online Media STB20 circuit board

Here is a HiRes picture of the STB20 circuit board .

 Set Top Box STB20M

The STB is slightly different from the normal STB20 in that it has a 1.28GB IDE disc drive installed. There is an i-cubed EtherLan 550 Ethernet adapter  installed in the STB20M with an unusual connection to the motherboard.

Here are some photographs:

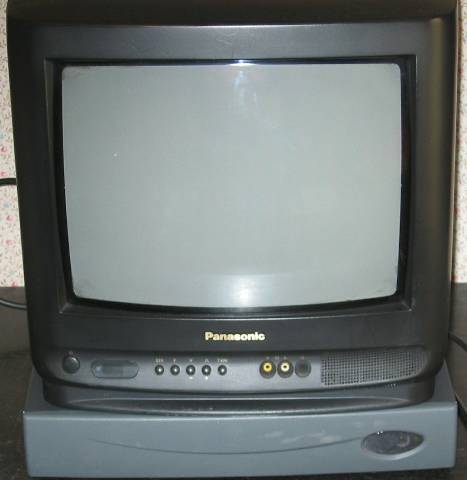

STB20M with TV set on top

STB20M with TV set on top

OM STB20M underneath a portable TV. The front appears to have lost a badge from the bottom left where there is a rectangular indentation.

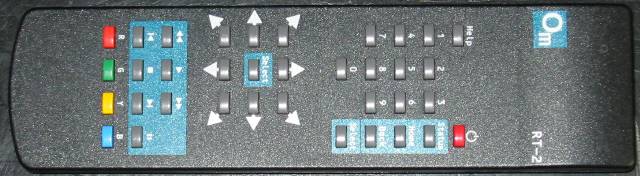

STB20 Remote Control

STB20M remote control

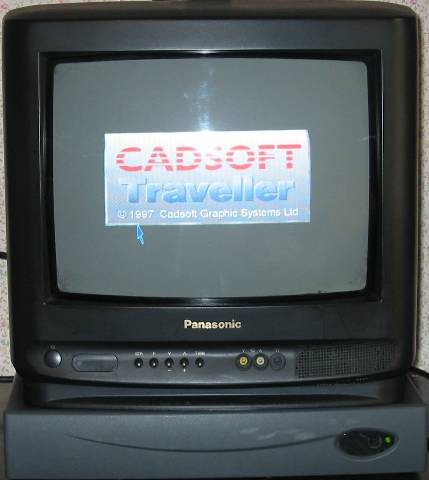

STB20M with startup logo

STB20M with startup logo

This photograph shows the STB20M displaying the CADSOFT Traveller banner while loading. This may not be the original software as the STB20M has clearly been used as a development system and has various software from 1997 in varying states installed.

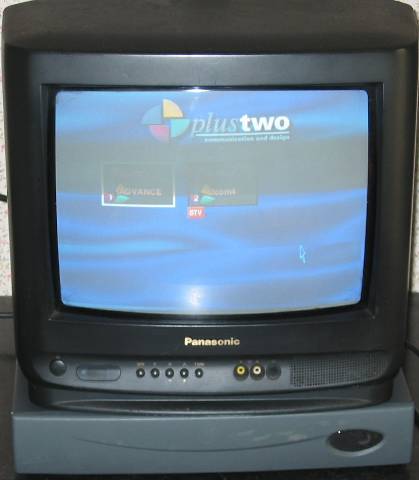

STB20M initial menu

STB20M initial menu

 This photograph shows the initial menu with a choice of 2 applications. The logo at the top of the screen is for Plus Two creative media solutions of Nottingham.

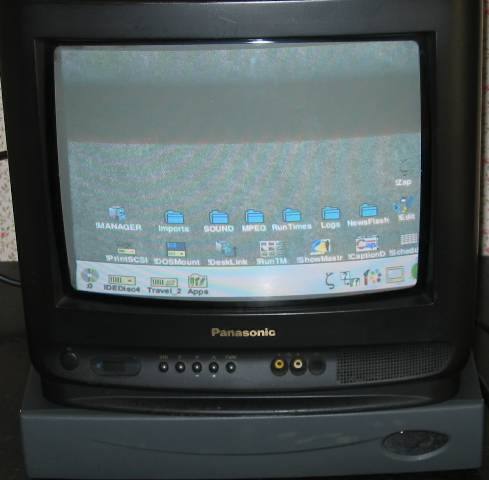

STB20M with RISC OS Desktop

STB20M showing RISC OS Desktop

It is easy to breakout of the STB20M menu system to a RISC OS desktop, apart from the various files on the pinboard, going from left to right, the Icon bar shows a non-existant CDROM, the hard disc, a shared disc and the resource filer, !Zap editor, !ChangeFSI, !Paint, Modes and half off the screen the Acorn Task menu. The version of RISC OS is 3.61, but unfortunately the !Boot directory has been heavily "customised" and many parts are missing.

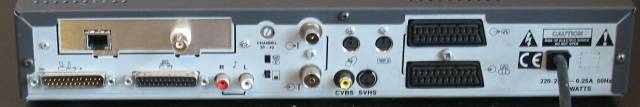

STB20M back

STB20M (back)

The back panel of the STB20M showing all the interface ports. On the top row from left they are: i-cubed EtherLAN550 podule with RJ45 and BNC connectors, TV out, PS/2 mouse, PS/2 keyboard, SCART TV out. On the bottom row from left to right they are: Joystick, parallel printer, audio R/L, TV in, video , SCART to video. Unfortunately the STB20M didn't have any documentation with it so, I have no more details of the ports.

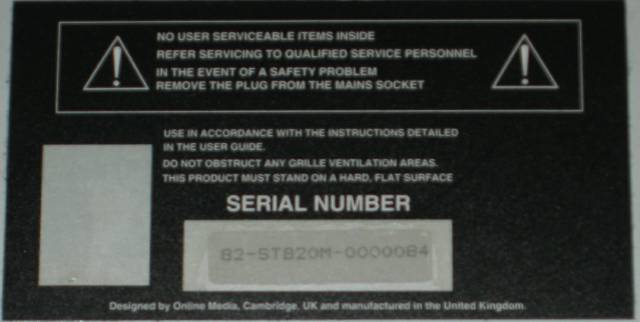

STB20M Serial Number

STB20M label and serial number

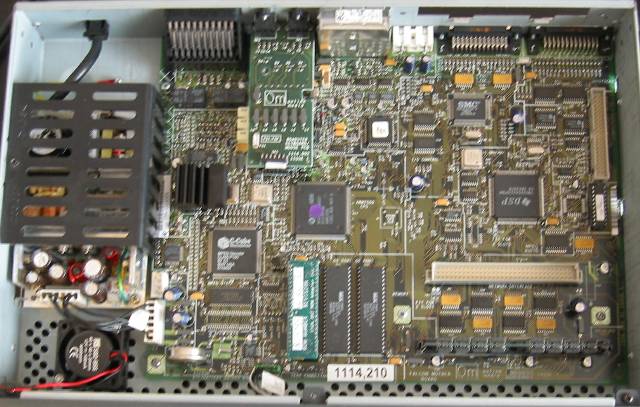

STB20M with cover off

STB20M with top cover removed

The STB20M with the top cover removed. On the left is the power supply and cooling fan. On the right is the i-cubed EtherLAN550 podule with a rather "temporary" looking backplane connector. In the middle under the black metal plate is the hard disc.

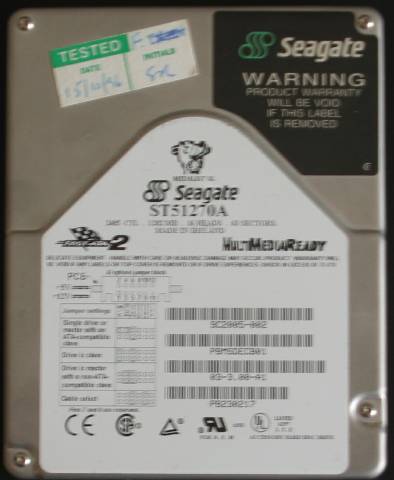

STB20M Seagate Medalist Hard Disc

Seagate hard disc from STB20M (multimedia ready)

I included this photograph because of the "MultiMediaReady" claim on the label. To quote from the Seagate product manual: "The drives are designed to ensure fast data throughput between the drive and the host".

STB20M motherboard

STB20M motherboard

This is a picture of the STB20M motherboard. On the left is the powers supply and cooling fan. In the bottom center are the 2 RISC OS 3.61 ROMs with an extension ROM on the little circuit board to their left. At the bottom right is the 32MB DIMM with the socket for the podule backplane above it. Above that is a TI DSP. On the right hand side near the top is the soccet for the IDE connector. In the middle above the ROMs is the 32MHz ARM7500 (with the purple spot) and above that is a daughterboard for the PS/2 mouse and keyboard sockets. To the left of the ARM7500 is an MPEG processor.

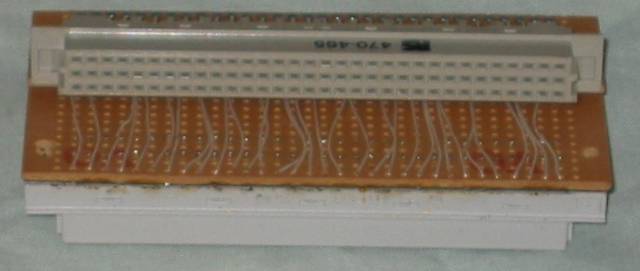

Acorn STB20M podule connector

STB20M podule connector

The rather home-made, temporary podule backplane from the STB20M.

Specification:

Serial No.80-STB20-001026682-STB20M-0000084
Unique identityn/a00000050A401082F
Motherboard part no.1106,000 issue 11206,000 Issue 1
CPU TypeARM7500ARM7500
CPU ModelVSLI VY27073B
12002,900 Rev A
VLSI VY27073B
1202,900 Rev A
CPU Clock32 MHz32 MHz
Memory ControllerARM7500 (IOMD)ARM7500 (IOMD)
Memorynone32MB DIMM
Memory Clockn/a16MHz
Video ControllerARM7500 (VIDC20)ARM7500 (VIDC20)
Floppy Disc Driven/an/a
Hard Disc Controllern/aon board IDE
Hard Disc Driven/a1.28GB Seagate ST51270A
CDROMn/an/a
Backplane Modeln/acustom
Backplane part non/an/a
Podule 0SJ Consulting Ericsson NIM controllerI-cubed EtherLan 500/A
NICn/an/a
OSRISC OS 3.61RISC OS 3.61
OS Date1-Aug-951-Aug-95
SICK v1.22
Dhrystone/sec
kWhetstones/sec
n/an/a
ARMSi v4.0
MIPS
n/a18.56
